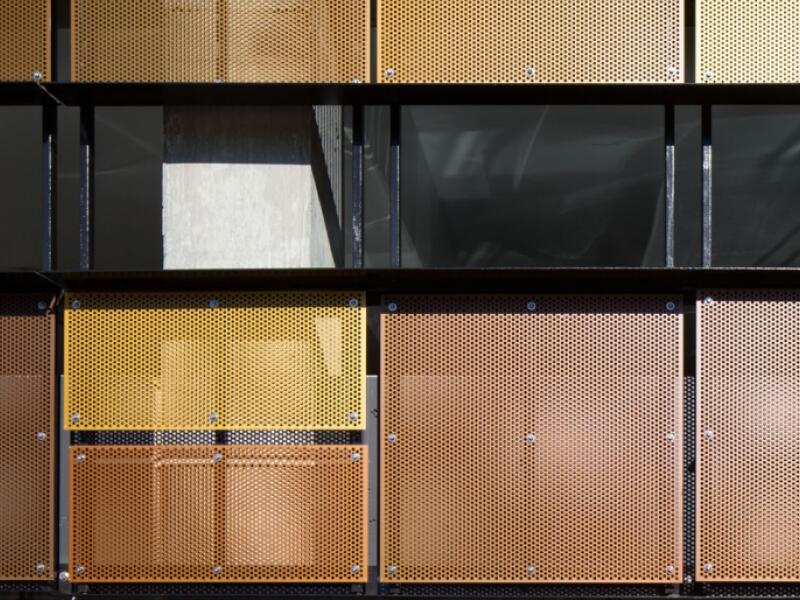

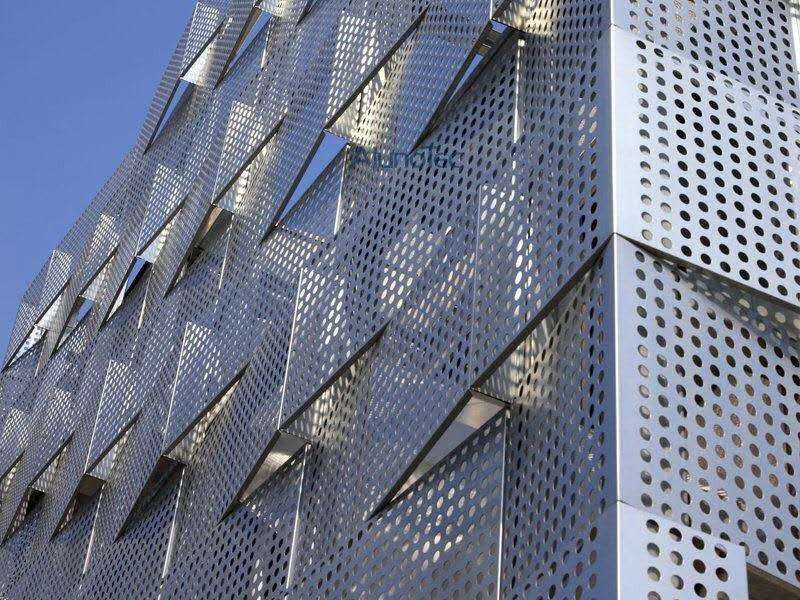

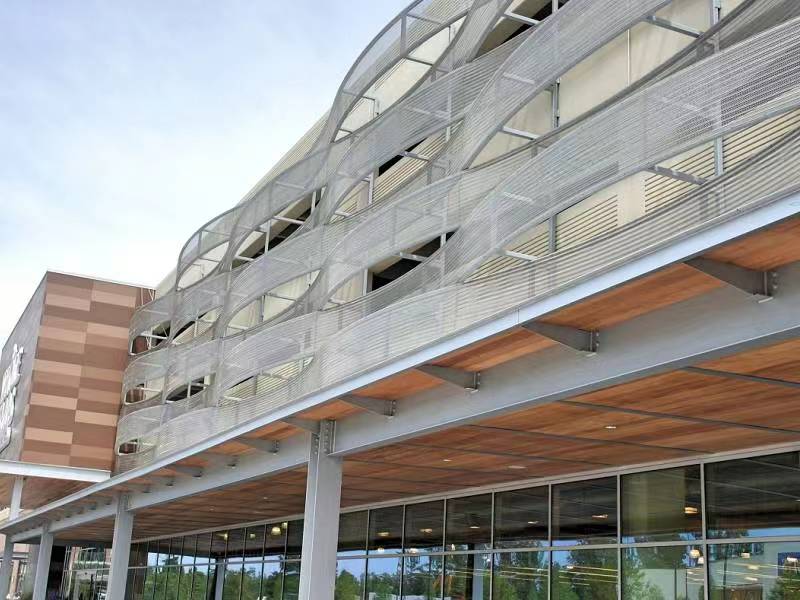

Juda Wire Mesh Co.,Limited has extensive experience in architectural applications, so we can provide start-to-finish guidance on building facades. Our equipment and tooling library allow us to offer numerous perforation patterns and customizations in a wide range of gauges and sizes. We can custom perforate panels with margins that attach easily to buildings. We take it beyond the basics to ensure the project stays on time, in budget, fully functional and is aesthetically beautiful.

Technical capabilities :

materials including of : Aluminum 1100, 1050, 1060, Aluminum alloy 3003, 3004, 5005, 5052, 5074, 5083, 6060, 6060T6, 6061, 6061T6, 7075 etc.

Temper: O, H14, H24, H32, H18 etc.

Perforation size: 0.5mm - 150mm. (additional Perforation sizes areavailable on request)

Sheet Thickness: Popular thickness: 1mm - 4mm. JD can perforate upto 20mm thick on special request/order.

Sheet sizes: Standard sizes include 2mx1m, 2.44mx1.22m, 2.5mx1.25m and3mx1.5m. Sheets 4mx2m are perforated on our larger machines. Longer lengths upto 6m perforated by specific request.

Metal Panel Fabrication Method: CNC Punching, Stamping, Shaping.

Surface Treatment:  PVDF Coated/ Powder Coated or Anodise

Color：RAL Color,Dulex Color,etc.Customized.

Percentage open area: All open areas are possible however the standardtooling tends to be between 20% and 60% open area.

Advantage：

* Can make different shape.

* Best material and very quality.

* More lasting color.

* Can produce any shape and design according to different requirement.

* Reach experience for construvtion project.

* Surface smoothness and easy cleaning.

Round – 60° Staggered Center

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Round – 45° Staggered Center

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Round – Straight Center

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Round End Slot – Staggered and Straight Center

Length

Width

Center w

Center l

OA

H.P.S.I *

* Holes per square inch
Calculate

Square End Slot – Straight Center

Length

Width

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Square – Straight Center

Side

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Hexagon

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate
