We can perforate almost any shape that you desire as our in-house tool room allows us to produce new tooling to suit your requirements. We offer bespoke patterns and shaes for custom designs based on customer specifications. In addition, Our decorative metal sheeting has many architectural applications including balustrade infill panels, Perforated Metal Ceilings, Building facades, cladding, balustrade infill panels and much more.

Technical Details

Hole sizes: 1mm-154mm, with additional perforation sizes available on request.

Popular thickness: 0.75mm – 12mm, however, JD can perforate up to 25mm in thickness upon request.

Sheet sizes: Standard sizes include 2mx1m, 2.5mx1.25m, 3mx1.5m and 4mx2m. Longer lengths up to 6m can be perforated upon request.

Percentage open area: All open areas are physically possible but standard tooling tends to be between 20% and 60%.

Standard perforation patterns include 60, 90 and 45 degree orientation.

materials including of :stainless steel sheets, aluminium sheets, steel sheets, galvanised steel and brass etc.

Please Note: Perforations must be the same or larger in size than the material thickness.

Metal fabrication

JD offers the following services; including cutting, rolling,folding,welding and Perforated Metal Finishes etc. Please see manufacturing section onour website for more information.

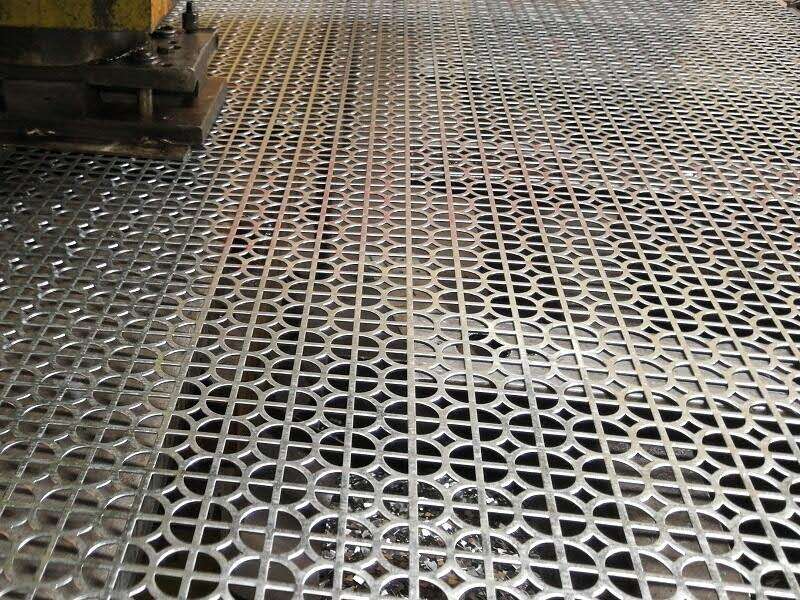

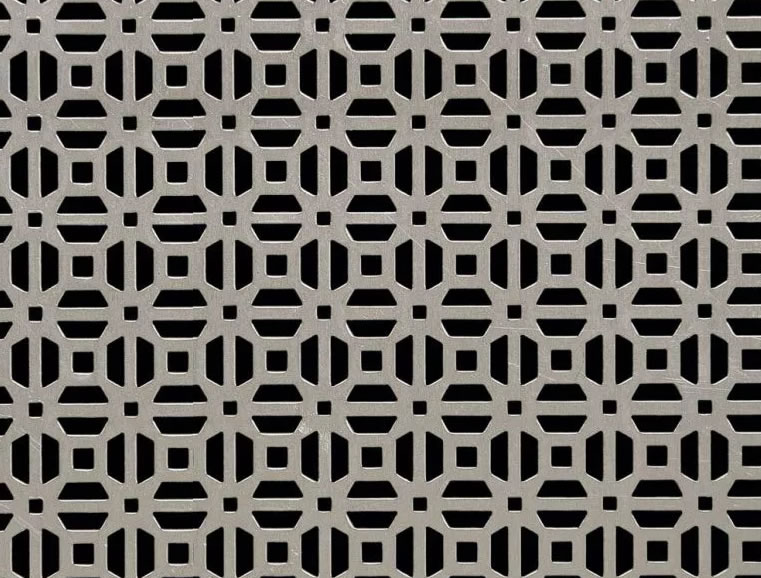

Illustrated below is a selection of our decorative patterns for punched metal sheets:

Round – 60° Staggered Center

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Round – 45° Staggered Center

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Round – Straight Center

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Round End Slot – Staggered and Straight Center

Length

Width

Center w

Center l

OA

H.P.S.I *

* Holes per square inch
Calculate

Square End Slot – Straight Center

Length

Width

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Square – Straight Center

Side

Center

OA

H.P.S.I *

* Holes per square inch
Calculate

Hexagon

Diameter

Center

OA

H.P.S.I *

* Holes per square inch
Calculate
